Function and Structure of Intelligent Circuit Breaker

The intelligent circuit breaker combines the traditional circuit breaker with the Internet of things technology to realize the intelligent management of daily electrical equipment and reduce the hidden dangers of power consumption.

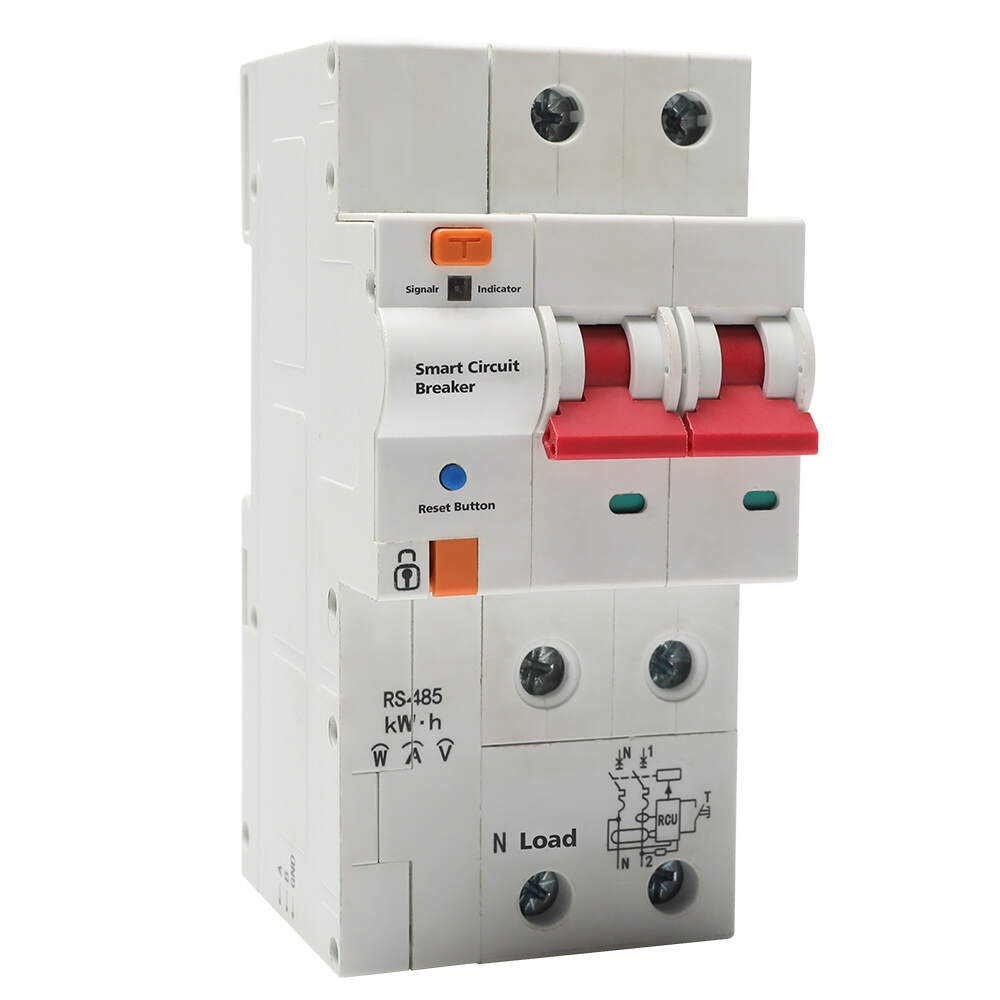

Structure of intelligent circuit breaker

Through the upgrading and transformation of the traditional circuit breaker, the intelligent circuit breaker is composed of a series of important mechanical components, such as an auxiliary contact device, arc extinguishing chamber, silver graphite static silver point, release, flame-retardant cover, operating handle mechanism, contact spring, short-circuit electromagnetic release, mutual inductor, overload metal sheet, etc. compared with the traditional circuit breaker, the intelligent circuit breaker greatly improves the power safety.

Function of intelligent circuit breaker

1. Intelligent circuit breaker has a long service life, safety, and reliability.

With bi-metal overload inverse time limit tripping protection and short-circuit instantaneous protection instantaneous tripping protection function, the service life can reach 100000+, with 10kA breaking capacity.

It has a leakage protection function, adjustable leakage value, real-time monitoring of terminal temperature, and adjustable alarm/action temperature value; In the case of under voltage protection, the over Undervoltage alarm value and Undervoltage action protection value can be adjusted. Built-in power supply, self-powered, backpack-free design, smaller size.

1. The intelligent circuit breaker can monitor and alarm automatically in real-time.

The intelligent circuit breaker can monitor the current, voltage, temperature, power, power, overvoltage, overload, overcurrent, over temperature, ignition, short circuit, and other fault alarms or trips in real time to prevent an electrical fire. It can also automatically alarm and pre-warning according to the preset value, as well as manual inspection prompt.

1. The intelligent circuit breaker issues a remote operation work order.

The intelligent circuit breaker automatically collects the standard time of the Internet of things and sets the timing control. Use a mobile app or PC cloud platform to realize remote operation, and support common functions such as remote alarm, work order distribution, etc.

1. Automatic leakage detection function of the intelligent circuit breaker.

The intelligent circuit breaker can also help people automatically detect whether the leakage protection function is normal. If it is abnormal, it will automatically alarm to avoid all kinds of electrical injuries caused by the failure of the leakage protection device!

1. Intelligent linkage scene-setting of the intelligent circuit breaker.

Smart circuit breakers are interconnected with smart home devices through smart gateways to facilitate intelligent linkage and scene setting, to ensure users' safe use of electricity, and realize intelligent control of devices, energy control, and interconnection of smart home devices.

1. Intelligent circuit breaker is energy-saving, controllable, and free to set.

The intelligent circuit breaker monitors the back-end electrical equipment in real-time, recommends limiting the current through an AI algorithm, and freely sets the on-off time of the circuit to ensure safety and energy saving.

Intelligent circuit breakers create a safe and reliable electric environment for users, "so that human beings will never be electrocuted again". Take this as our responsibility, so that there are no hidden dangers in the safe use of electricity.
