1p RS485 Smart Circuit Breaker

Product introduction

With the improvement of modern demand,traditional air circuit breakers are gradually unable to meet the need for safety of electricity in daily life. Intelligent air circuit breaker is upgraded to the traditional air circuit breaker. Realize the processing of the operating data of power distribution equipment through the IOT technology and smart air circuit breaker, device setting, early warning and alarm. It integrates the functions of traditional air circuit breakers but they are able to collect the data information such as temperature, power, current, voltages, power etc. Realizes the intelligent control of the circuit breaker through the cloud smart power platform.  More secure and More energy-efficient

● High precision metering function:

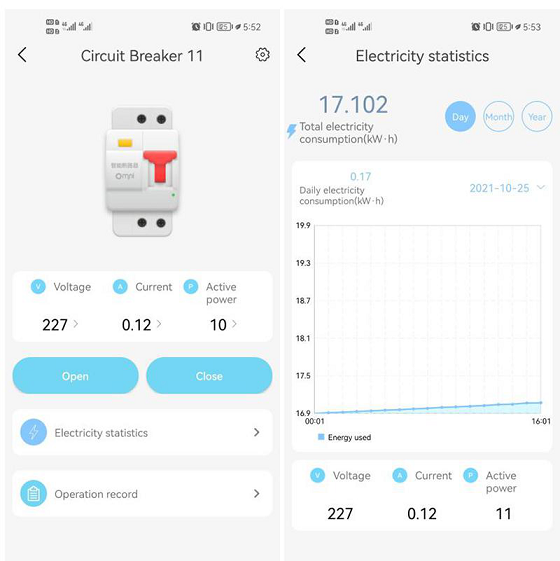

The intelligent circuit breaker  equipped with the function of metering the dates such as real-time voltage, current leakage, current temperature, power value,. It is conducive to help you monitor the  electrical appliance condition better and know the daily , monthly and yearly electricity consumption. This feature can offer you a train of thoughts on how to save  electric energy and money.

● Over-voltage, under-voltage,over current,overload,leakage,overpower protection,parameters can be set flexibly:

The intelligent circuit breaker can set the rated voltage and the rated current. When the voltage is higher or lower than the rated voltage, the current is higher than the rated current, or  there are situations like overload, leakage and over power, the intelligent circuit breaker will automatically switch off to protect the electric circuit and the electrical appliances. It is noted that in case of trip due to loss of voltage protection, the product cannot be manually closed.

●  Power limiting setting:

 Set limited power to prevent the circuit damage cused by overload.

● 6000A ICS breaking capacity:

The national standard is 4500A, but our product's breaking capacity is 6000A.  It means that when the 6000A fault current occurs in the line, the circuit breaker can cut the circuit safely, and the circuit breaker is allowed to  reuse after the current is switched off.

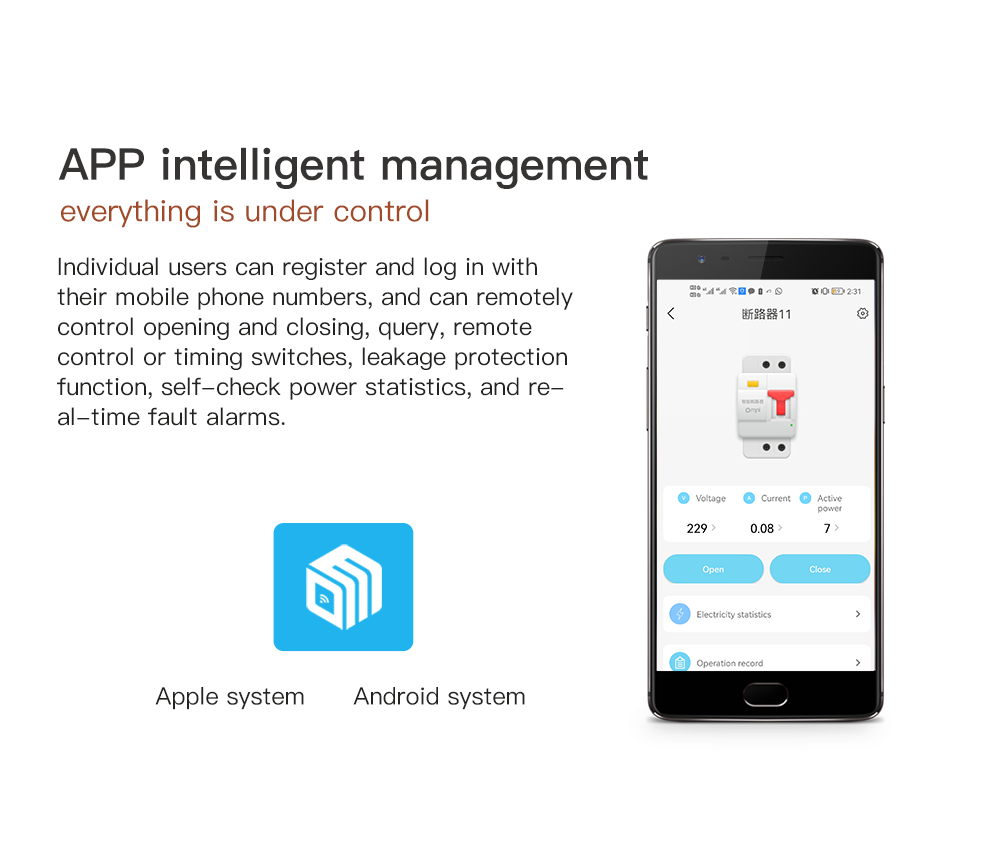

●  Remote closing and opening control:

●  maintenance safety lock:

The circuit breaker equipped with mechanical lock can be remotely locked and unlocked. This function ensures  safety during maintenance.

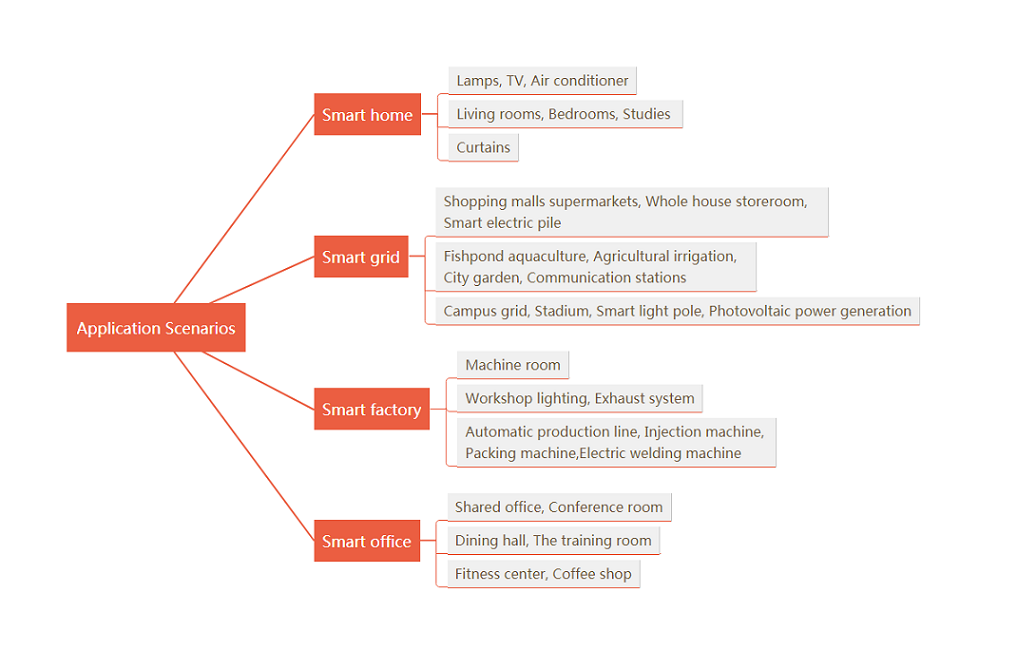

Application scenarios

Next, we will illustrate some examples on some specific scenarios the circuit breaker applied in.

● Smart Street Lamp

Nowadays, many countries have recognized that the  public lighting management system has a lot of disadvantages, and are eager to upgrade and rebuild the traditional street lamp to control the energy consumption and lower the costs of maintaining and management. In London, the local authority has planned to invest ￡3.25m to replace 14,000 "smart" street lights

Equipped with an intelligent circuit breaker, Maintenance staff can know the direct and clear voltage, current and power data of each street lamp,  know whether the streetlights need to be repaired or replaced, and  control the brightness of each street lamp as long as using a mobile device.

● Smart Home

With the function of setting the limited power and Over-voltage, under-voltage,over current,overload,leakage and overpower protection, the intelligent circuit breaker makes the home safer.Specially when there are kid at home alone, you can remote switch off the entire circuit to protect the kids from causing damages.

Product parameters:

• Rated current: 16A 32A，40A，63A，80A
• Rated working voltage: 230V
• Rated frequency: 50/60 Hz
• Working temperature: -10 ~ +65℃
• Rated insulation working voltage: 500V
• Breaking capacity: 6000A
• Mechanical life: 6000times
• Protection level: IP20
• Working temperature: -25 ~ +50℃
• Terminal connect type: Cable/U shaped socket/Pin socket/
• Terminal connect wire: 1.5-25 mm²
• Terminal block size: 25mm²
• Leakage protection circuit: 10-90mA Configurable
• Communication specifications: RS485 9600 8N1
• ESD Grade: Contact ±8KV，Air ±12KV
• Product Dimension: 116*54*73mm （2P） 116*36*73mm （1P）
