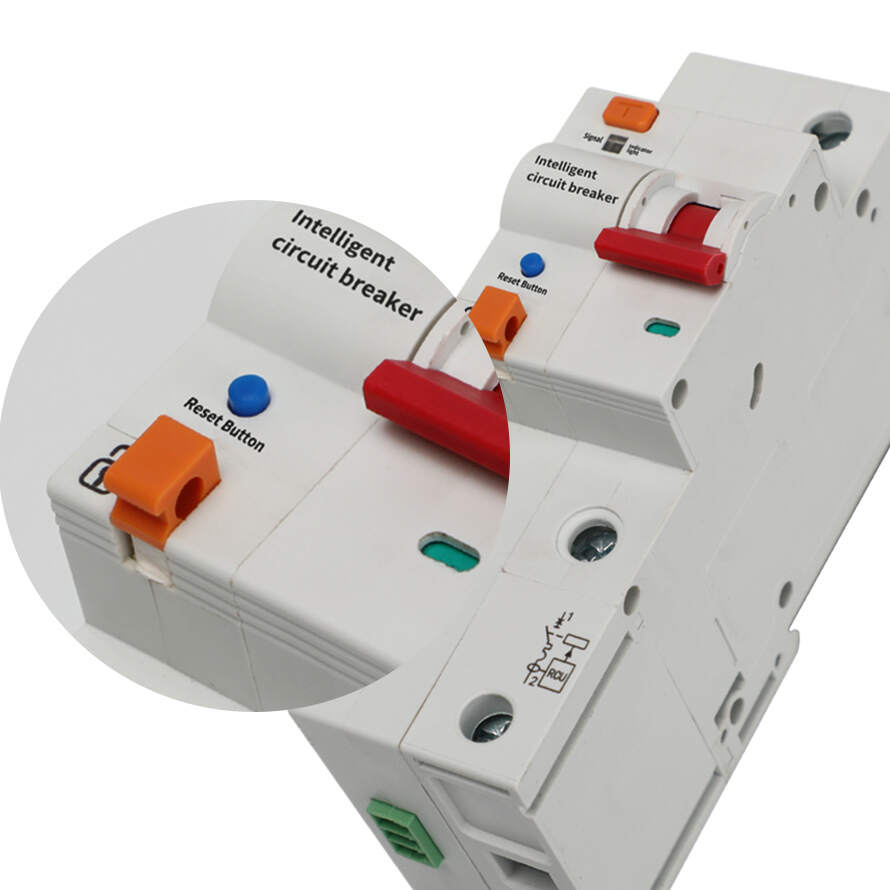

RS485 APP Control 1P 2P Smart Circuit Breaker For Smart Factory
≥100/piece
$39.50
Quick Details
OEM：
Available
Sample:
Available
Port:
ShenZhen
Payment:
T/T
Place of Origin：
China
Shipping：
Support Express · Sea freight
Supply Ability：
10000 piece per month
Quick Details
Shipping fee
Shipping fee
| Smart Circuit Breaker: Mainly used for AC 50Hz/60Hz, rated voltage 230V, rated current to 32A,40A,63A,80A circuit overload, short circuit protection role, at the same time can also under normal circumstances not frequent on-off electrical devices and lighting. It has high breaking capacity and can trip quickly. The product is also used for infrequent on-and-off switching of electric equipment and lighting circuit under the normal condition. |
|---|

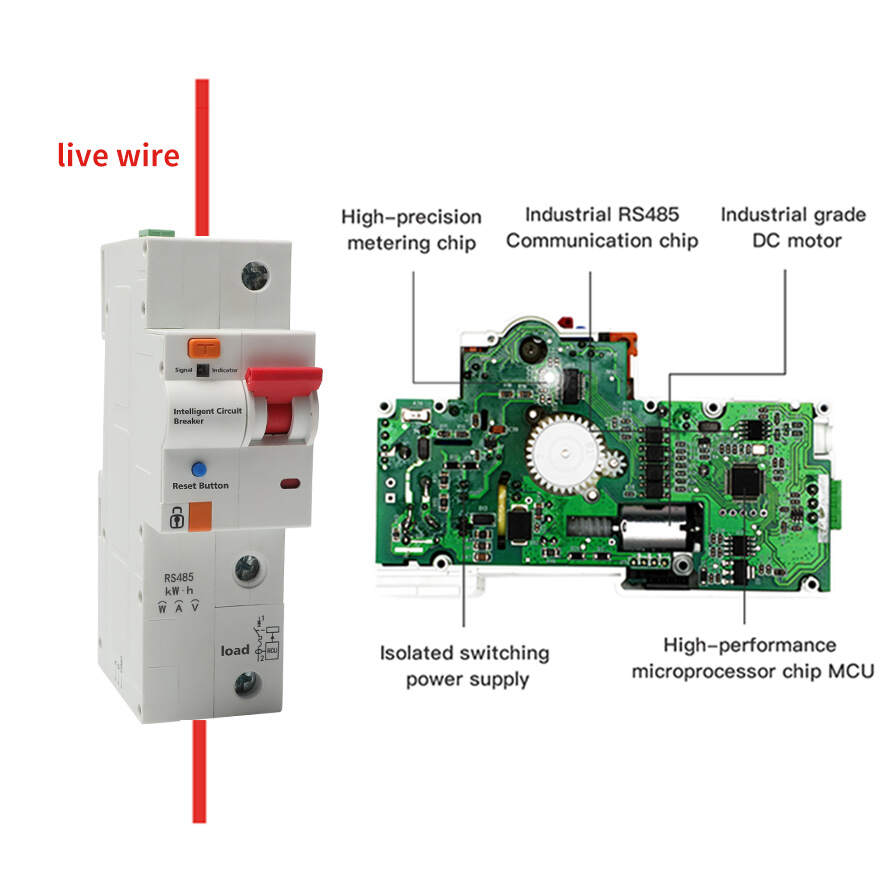

| Product features:Remote wireless communication technology:With local RS485 communication and GPRS (2G / 3G) wireless communication,supporting 2G,4G,Ethernet,wifi,Bluetooth,MQTT and other communication modes.it can realize remote opening and closing control, fault inquiry, and timing reporting of measurement dataProtection function:Monitor the power consumption of the output terminal and automatically cut off the power supply if an abnormal situation occursMetering function:With high-precision voltage and current real-time monitoring and energy metering, which will help to analyze the energy consumption of the electrical devices.Can be set as a communication gateway:Through the ontology 485 interface for the branch small current switch combination networkingIt integrates multiple protection functions:Such as over voltage,under voltage,missing phase,wrong phase,loss of voltage,overload,short circuit,leakage,temperature,voltage/current imbalance,over power,under power,anti-power theft and so on into one,and supports early warning in accordance with the preset proportion |
|---|
| Brand | Omni |
|---|---|
| Product Model | O404KG |
| Number Of Poles | 1P 2P |
| Current Voltage | 230Volts/500V |
| Current Rating | 32A,40A,63A,80A |
| Breaking Capacity | ≥6000A |
| Size | 116 x36 x 73mm/4.6"x 1.4"x 2.9" (L*W*H) |
| IP Level | IP20 |
| Frequency | 50/60Hz |
| Tripping Time | ≤0.1S |
| Use Environment Temp. | -10ºC~+65ºC |
| Storage Environment Temp. | -25ºC~+70ºC |
| Mounting Type | 35mm DIN Rail Mount |
| Protective function(optional and configurable) | Overload (overload value:default 100A,parameters can be set),Short circuit,Auto-re-closing,Over-voltage and under-voltage,Lack of phase,unbalanced |
| Product description:Under normal condition of voltage leakage:If the device is in the state of breaking,the device will not close automatically,but can only close remotely by controlling the device end or manually by local operation.If the device is in the closing state,the device will not open automatically,but can only close remotely by controlling the device end or manually open by local operation.Under abnormal voltage leakage:If the equipment is in the closing state,the equipment will automatically open,and voltage is changed to normal;If the leakage self-check is not normal,the equipment will continue to open automatically once.After troubleshooting,manually operate locally or remotely control the closing. If the device is in the opening state at this time,the device will not close automatically. |
|---|
| After manual on-site troubleshooting, remove the safety lock, push back the safety lock lever, and try to manually operate the closing button and close once. If the closing is not successful, check whether the equipment is in arrears or other circumstances to perform the opening; When the safety lock lever is not pulled out, the equipment is in operation mode: when the safety lock is pulled out, the equipment is in maintenance mode and can be repaired only after padlock is needed. The safety lock and the mechanical structure of the circuit breaker can not be closed even if manually or remotely controlled, so as to ensure the personal safety of the maintenance personnel. |
|---|

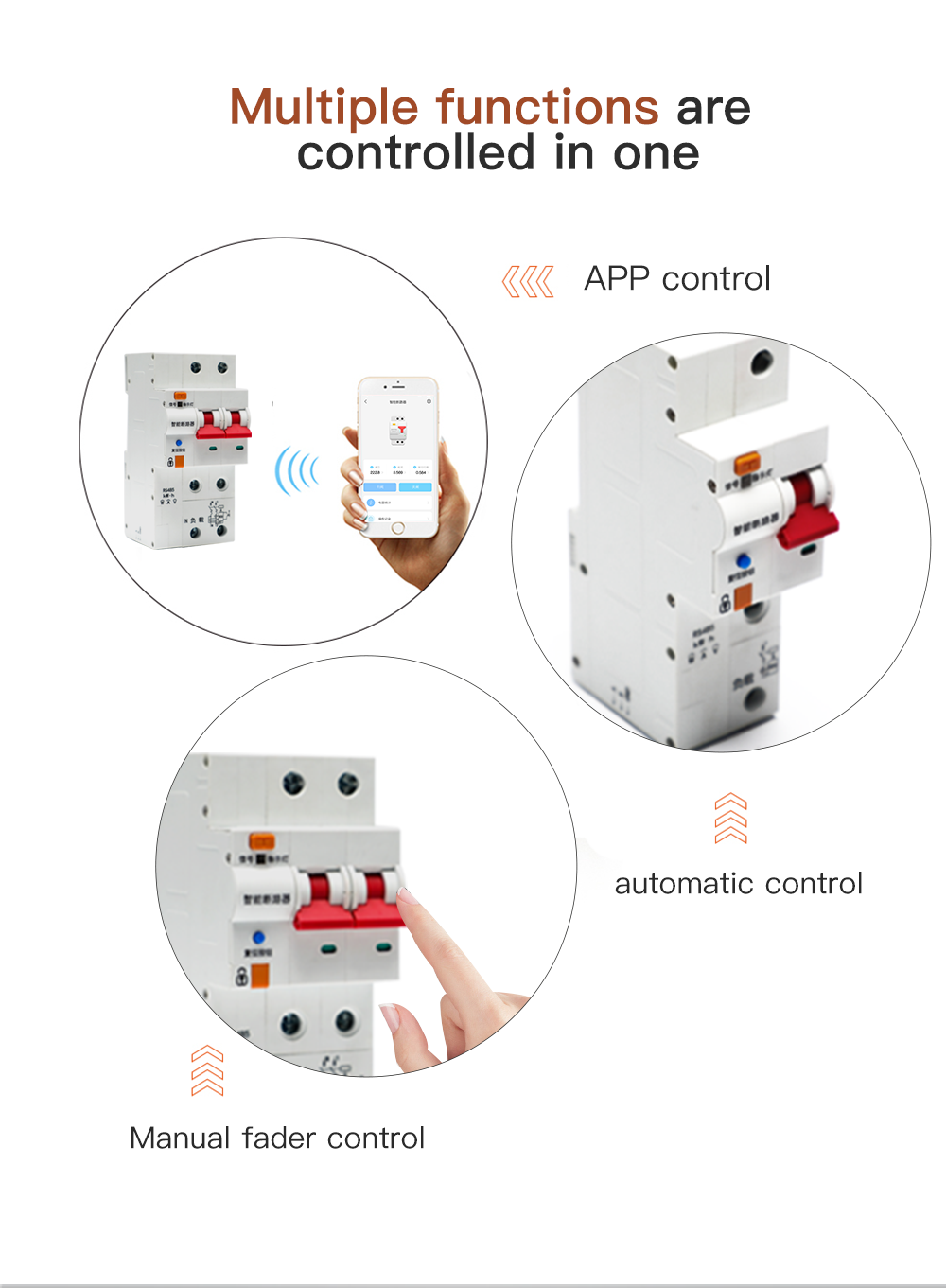

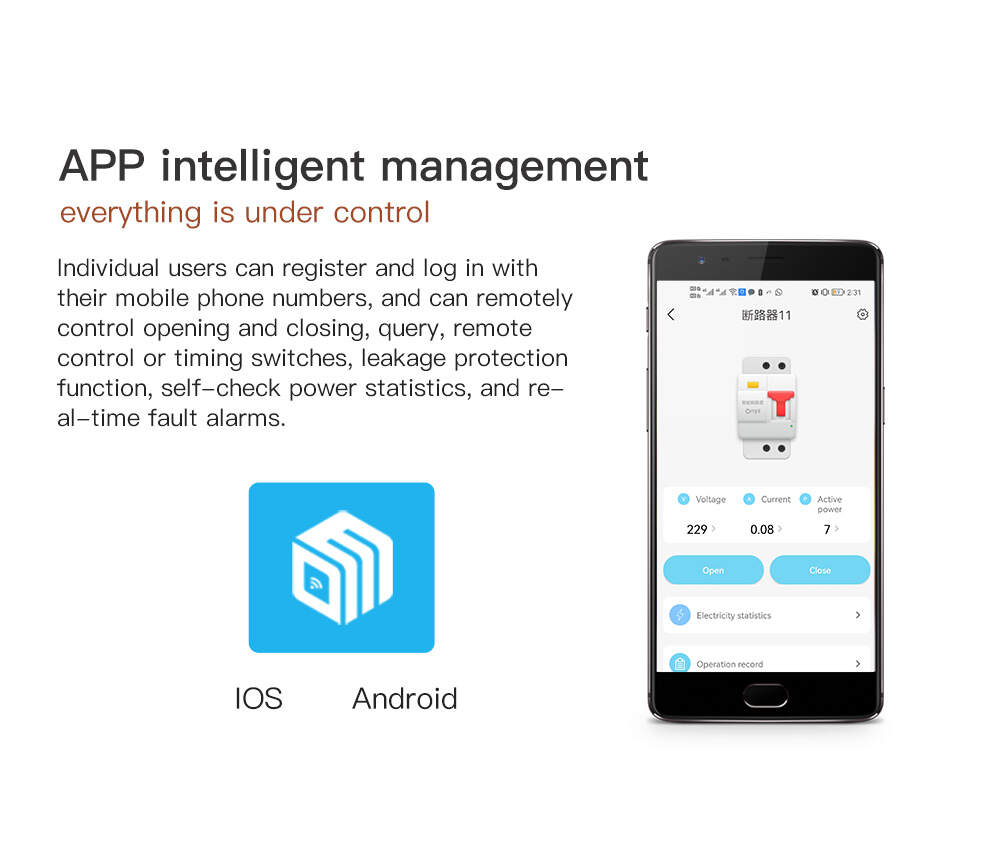

| APP intelligent management,everything is under control:Conveniently control your connected devices with the free mobile "Smart Life"phone App no matter where you are.Share the control with your family members or friends for maximum convenience.Support multiple phones to control one breaker or one phone to control multiple breakers at the same time. |
|---|

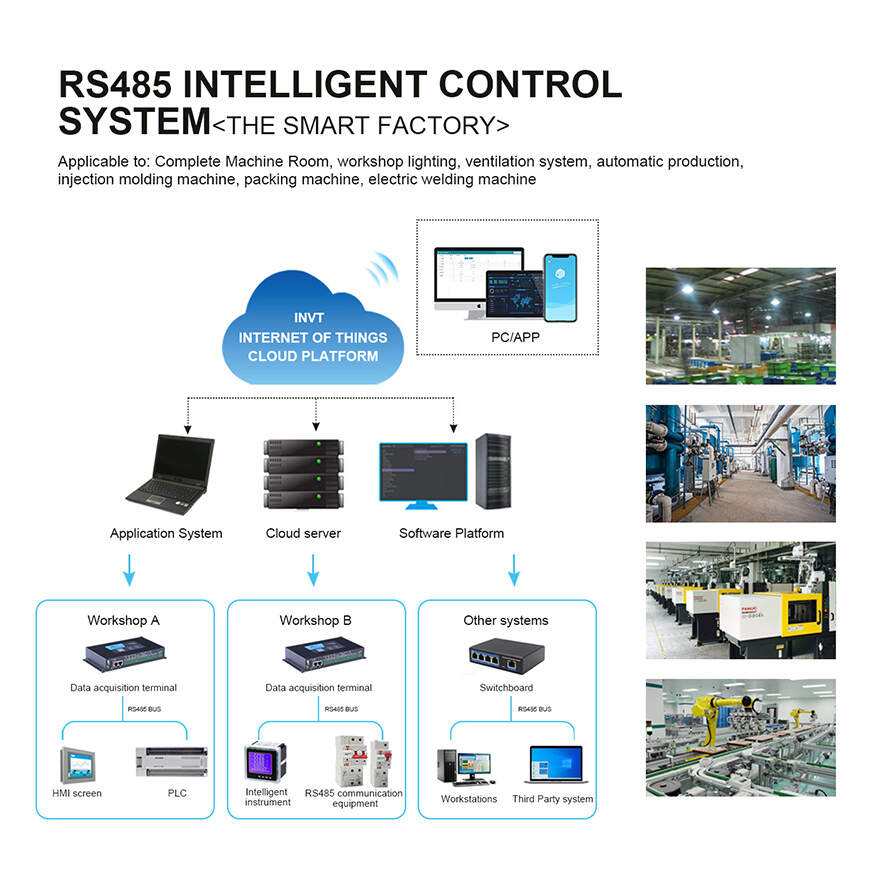

| Application scenarios:By enabling iot technology and smart circuit breaker between equipment modernizing of substation is easier as one scale sensor nodes quickly.This approach also is convenient and energy-saving as compared to a traditional solution.The factory is a unit with high power consumption, and it cannot be ignored in terms of safe power consumption. Smart circuit breakers can provide efficient power consumption management and improve the safe power consumption mechanism.Applicable to:complete machine room,workshop lighting,ventilation system,automatic production,injection molding machine,packing machine,electric welding machine. |
|---|
