RS485 2p Smart Circuit Breaker

What is an intelligent remote circuit breaker?

Intelligent air circuit breaker is upgraded to the traditional air circuit breaker. Realize the processing of the operating data of power distribution equipment through the IOT technology and smart air circuit breaker, device setting, early warning and alarm.

Product features:

• Multiple control modes:

You are able to control the circuit breaker manually, automatically or by the APP

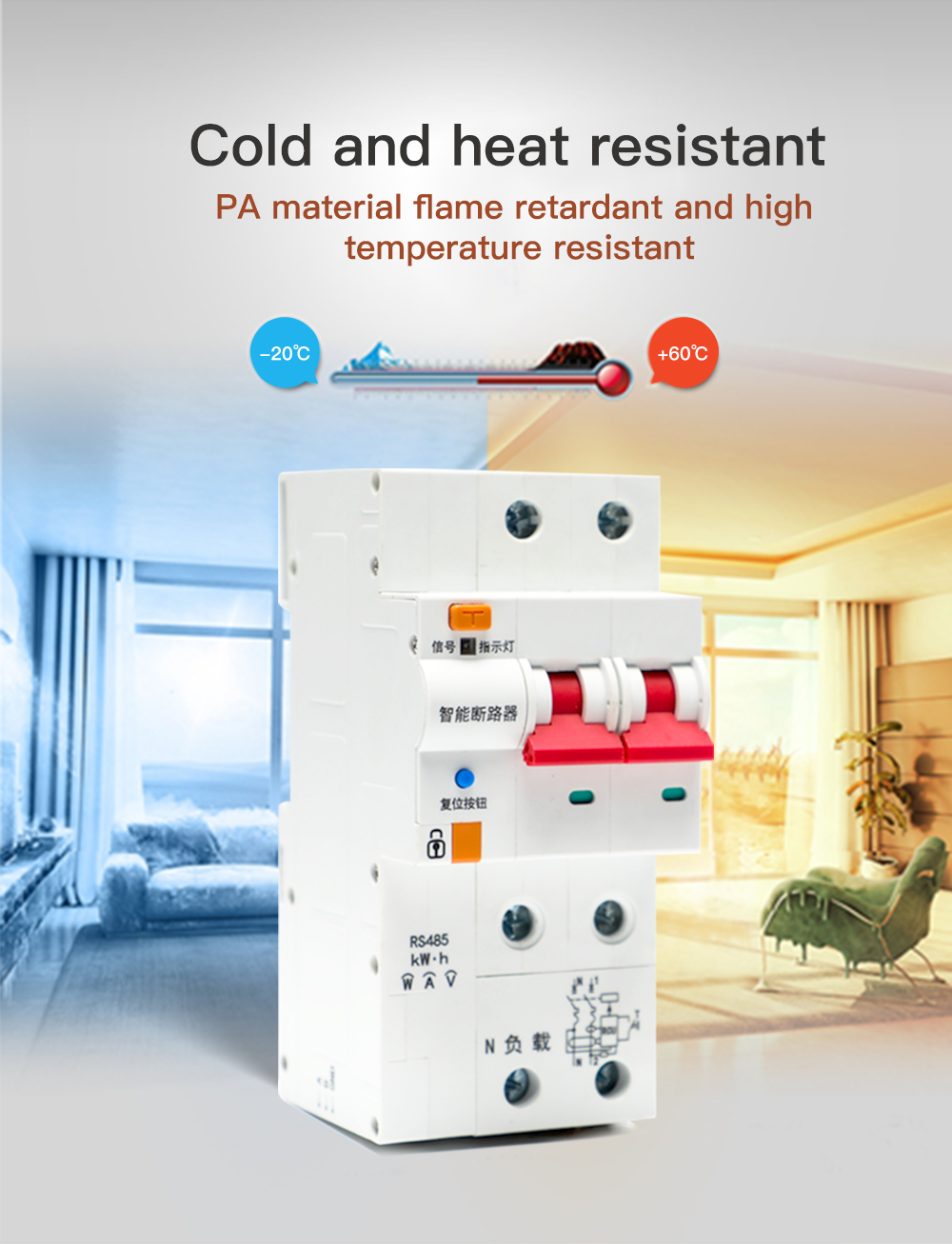

• Cold and heat resistance:

The product can work normally at temperatures ranging from minus 20℃ to 60℃

• 6000A ICS breaking capacity:

The national standard is 4500A, but our product's breaking capacity is 6000A.  It means that when the 6000A fault current occurs in the line, the circuit breaker can cut the circuit safely, and the circuit breaker is allowed to  reuse after the current is switched off.

• Visualization window:

You can get the product's working state clearly.

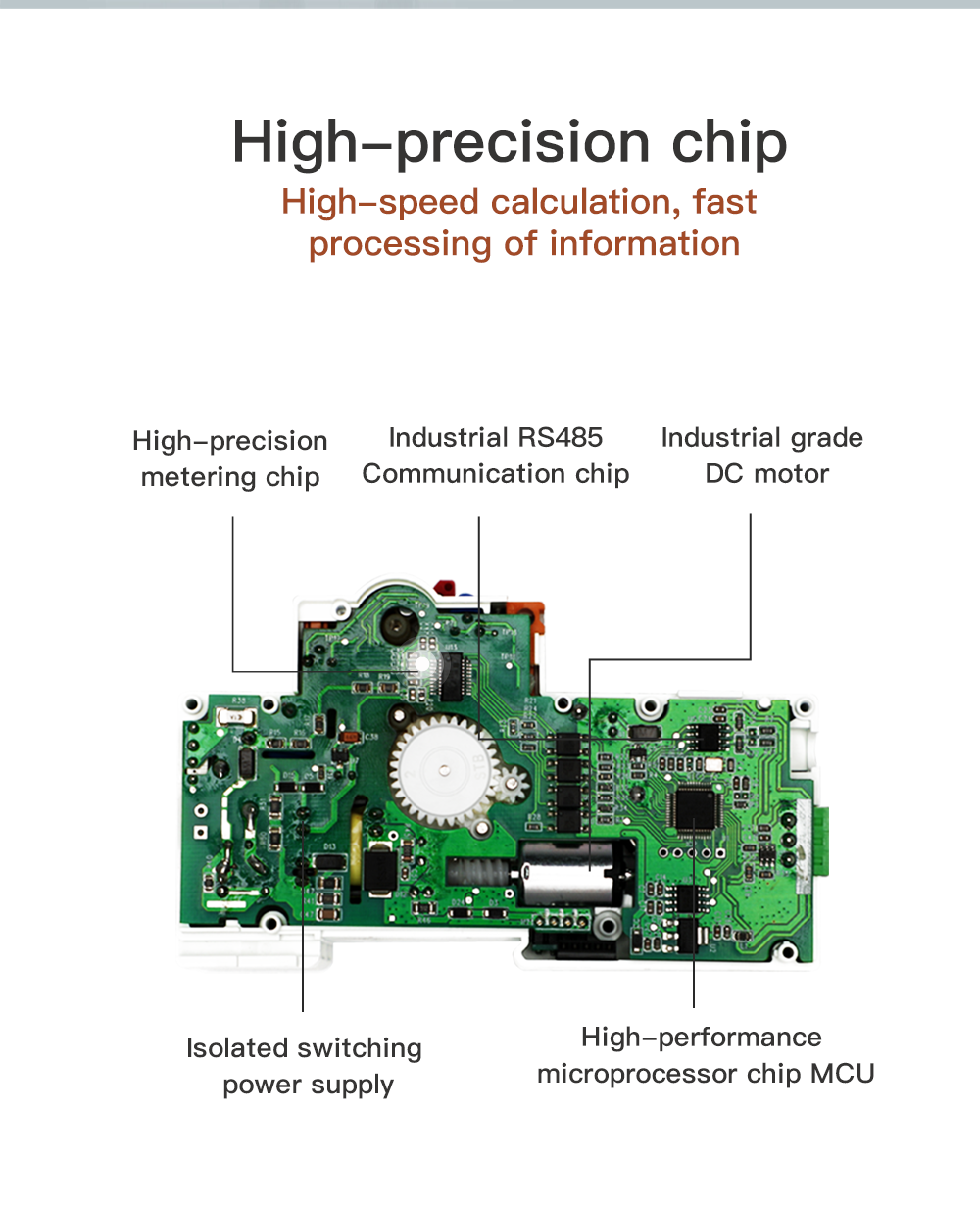

• High-precision chip:

High speed calculation, fast processing of information

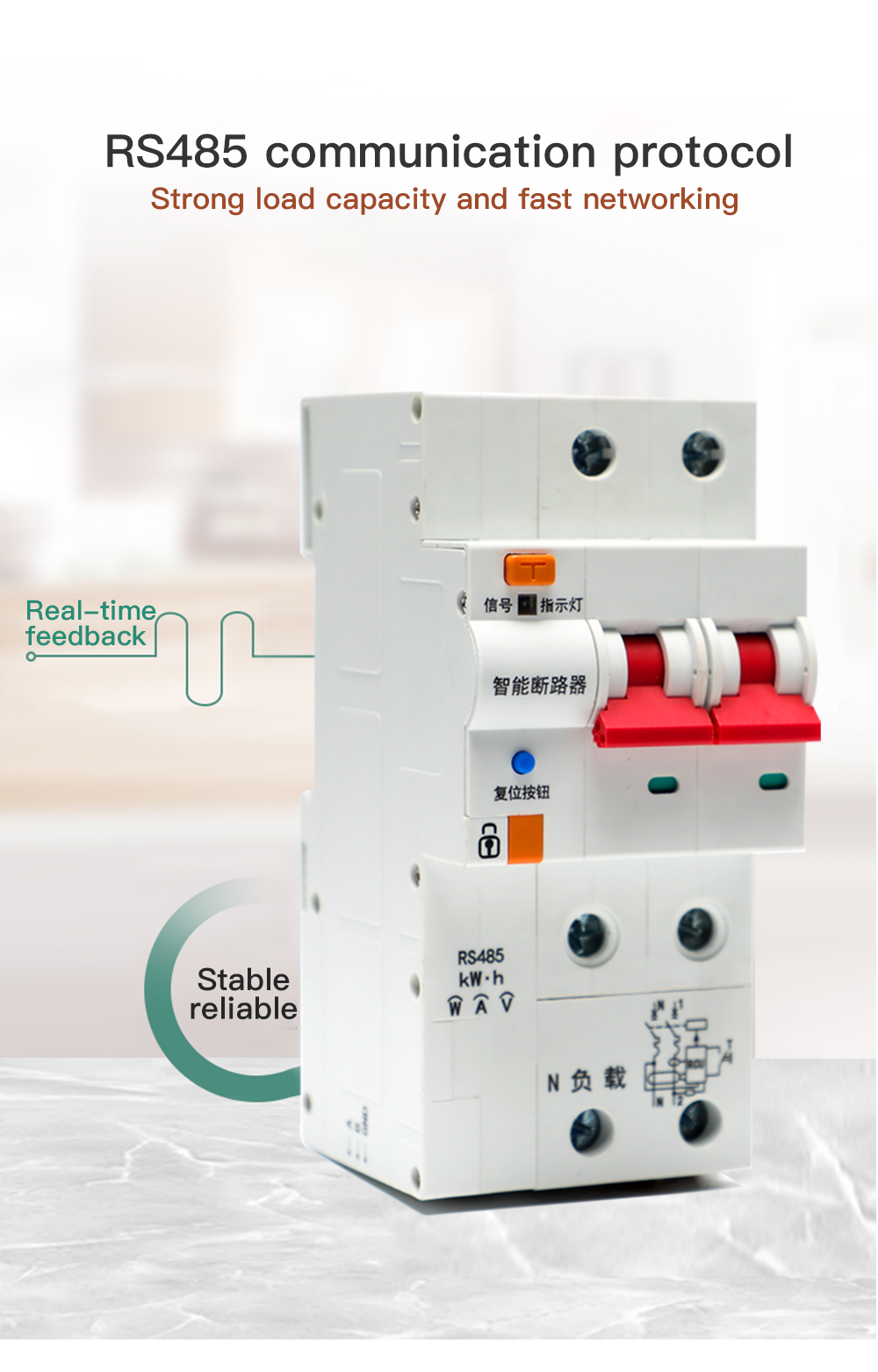

• RS485 communication protocol:

Strong load capacity and fast networking

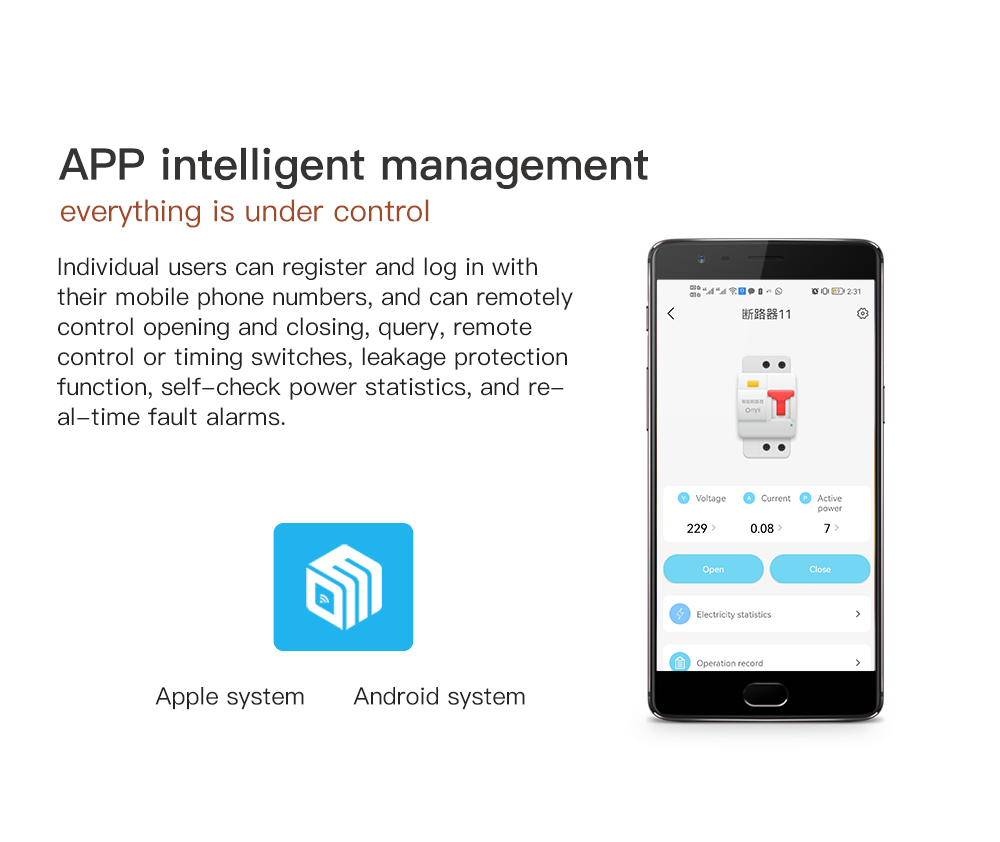

• APP intelligent management:

Individual users can register and log in with their mobile phone numbers, and can remotely control opening and closing, query, remote control of timing switches, leakage protection function, self-check, power statistics, and real time fault alarm.

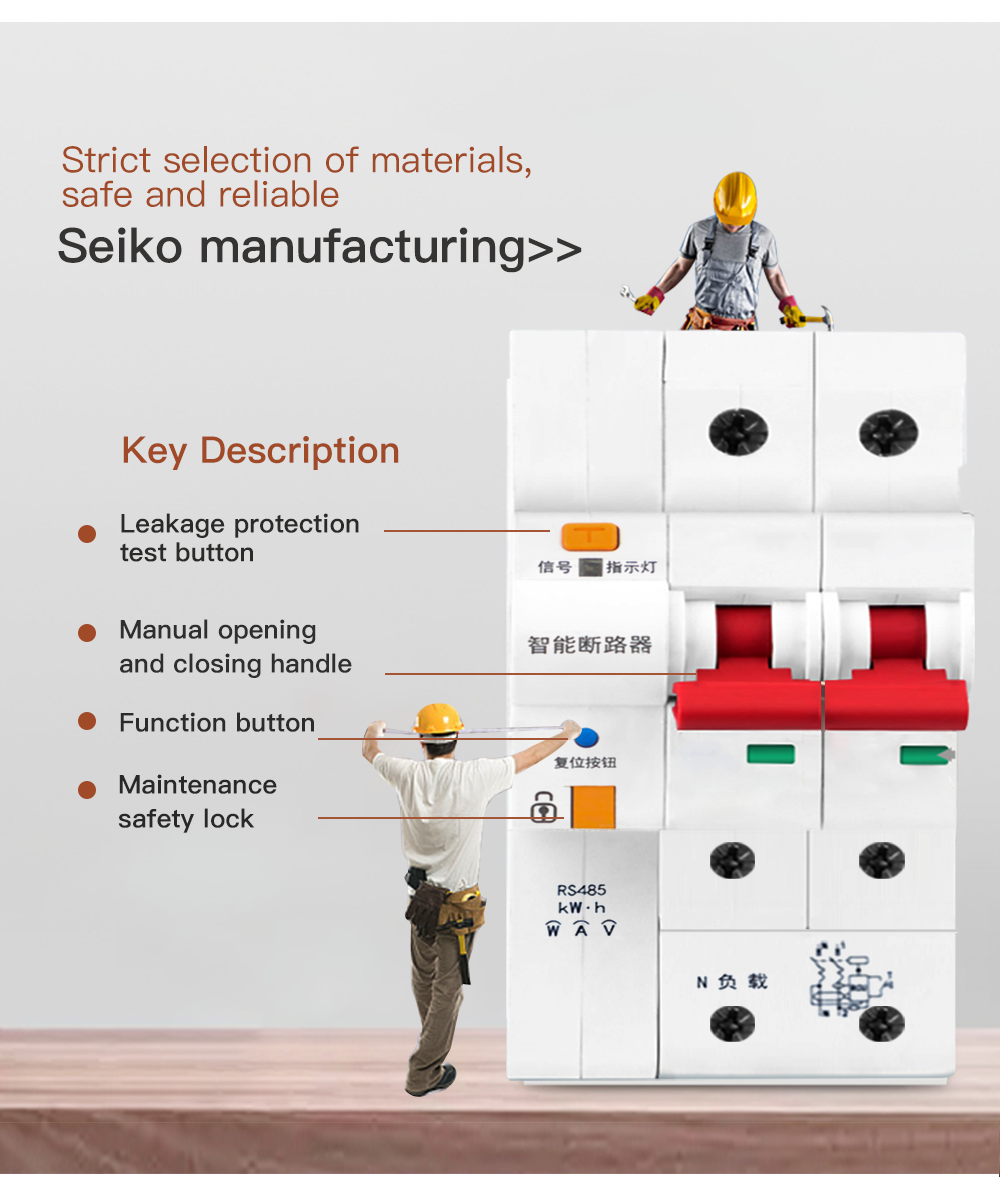

• Maintenance safety lock:

  The circuit breaker equipped with mechanical lock can be remotely locked and unlocked. This function ensures  safety during maintenance

`

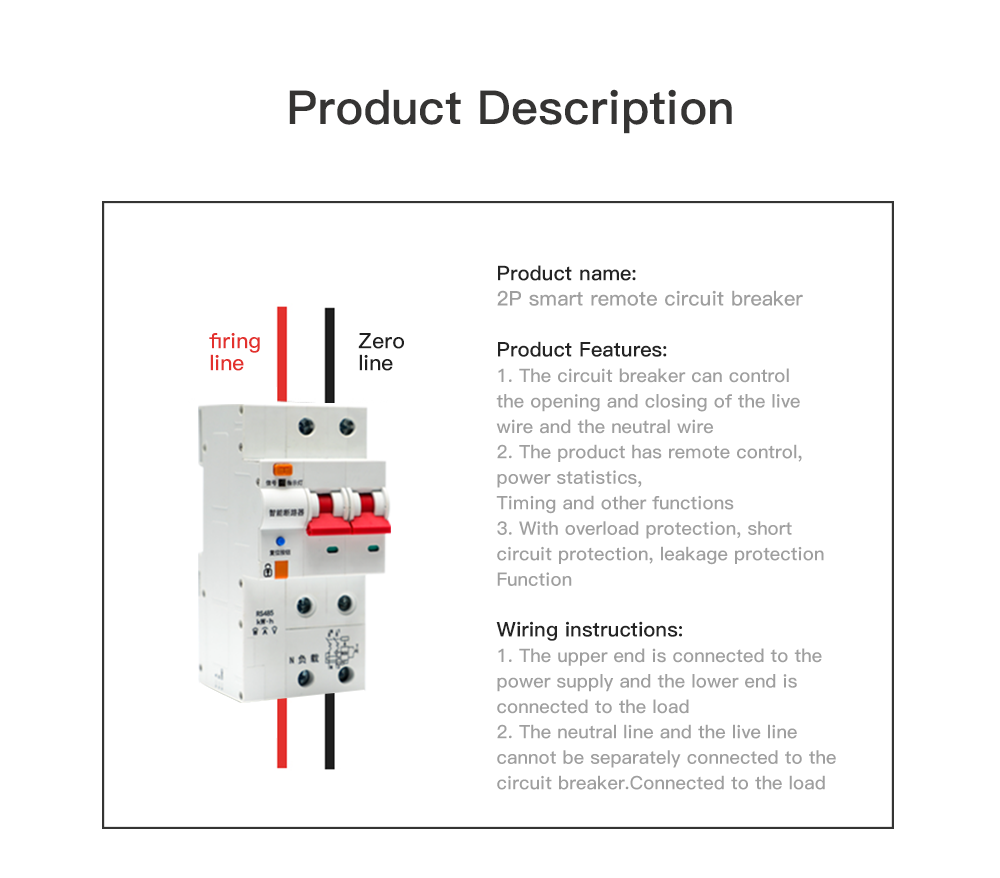

Product description:

product features

• The circuit breaker can control the opening and closing the live wire and the neutral live
• The product has remote control, power statistics

wiring instruction

The 2p circuit breaker needs to be connected to both the live wire and the neutral wire, and the circuit breaker will cuts the neutral wire when there is something wrong with the circuit.So for the places that are more important, need to be maintained and operated or prone to failure of the electrical circuit, it is best to use a 2P circuit breaker.

• The upper end is connected to the power supply and the lower end is connected to the load;
• The neutral line and the live line cannot be separately connected to the circuit breaker.Connected to the load.

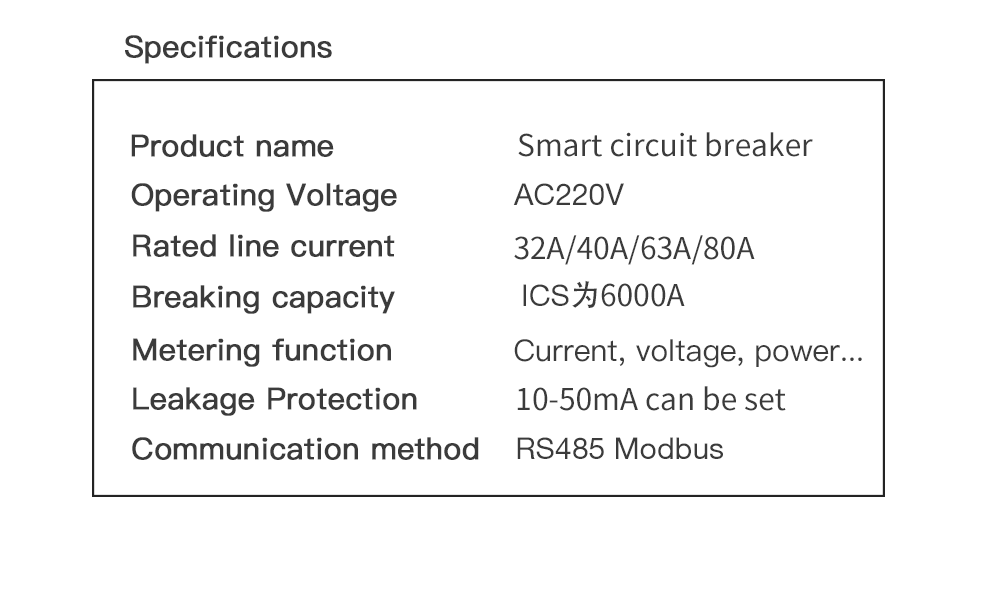

Product specifiction:

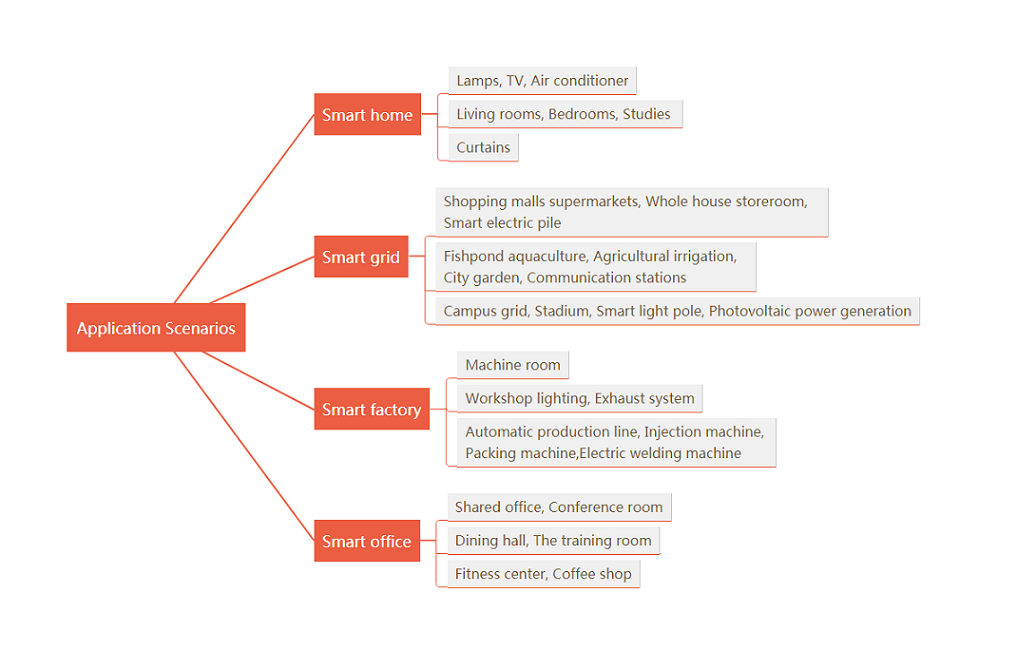

Application scenarios:

When the intelligent circuit breaker is connected with an intelligent breaker gateway module, it can realize the functions of remote control and scenes setting, greatly matched the pace of urban automation and can be widely put into use in various places. Omni intelligent circuit breakers support the different rated current of 16A, 32A, 40A, 63A, 80A. Its characteristics and the different parameters that can be customized according to the customers' need cover different power consumption ranges, suitable for different scenarios

.

Next, we will illustrate some examples on some specific scenarios the circuit breaker applied in.

• Smart School

Traditional schools used to manually supervise and inspect the electricity situation, which to some extent causes a lot of difficulties, such as hard to maintain, unable to get the accurate statistics instantly, and hard to manage the huge electrical system.

However, Intelligent circuit breaker can greatly improve the efficiency of electricity management, helping you directly get all kinds of power consumption data of each equipment on APP.  and formulate a personalized electricity management scheme. For example, set a rated current and limited power for the domitories as you need to ensure the safety of students.

• Fishpond Farming

In the past, the fishpond farmers had to watch the fishpond 24 hours a  day to master the dissolved oxygen value. But with the help of intelligent circuit breaker, the fishpond farmers can remotely control  when to input oxygen and when to end at home, they do not need to  switch on and off the oxygen adding equipment manually.
